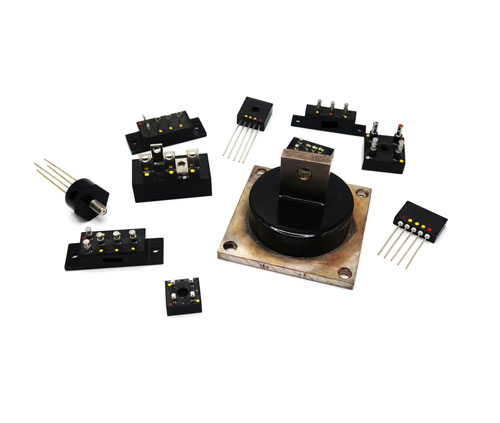

High Power Rectifiers
PD&E Electronics offers High Power Rectifiers, Transient Surge Suppressors, Single and Three Phase Bridges, and other types of custom High Power Units. The units support output currents to 1500 amps and output voltages as high as 40,000 volts. The combination of low thermal resistance and highly thermally conductive materials makes these high-power units extremely effective, even under worst case conditions.
Every unit can be customized to meet industrial, military, or custom requirements.
Temperature Ranges
The temperature range of our high power rectifiers range from -65 to 175°C
Packaging Options
We offer unique and standard packaging designs, which provide essential characteristics required of the device. Our discrete units are typically hermetically sealed and use glass-passivated silicon rectifiers in their construction. Assemblies can be enclosed in epoxy, plastic, or metal cases or unique designs as required.
Quality & Testing
High power rectifiers are manufactured and tested to military, industrial, or your custom specifications. We offer a wide range of testing options to meet your unique requirements.
High Reliability
Testing
- High Temp Functional
- Low Temp Functional
- Steady State Operation
- Operational Life Test
- Thermal Shock
- Power Burn-In Processing
Environmental
Testing
- High/Low Temperature Bake
- Altitude/Vacuum/Pressure
- Shock & Vibration
- Humidity
- Hermeticity
- Submergence
Electrical Testing
- Electrical Bench Testing
- Electrical Bench Testing DC and AC Voltages to 500 MHZ
- Reverse Leakage Testing to 40kV
- Forward Voltage Testing to 1500 Amps
- Reverse Recovery Time Testing
- Reverse Energy Testing
- Forward Surge Testing
We offer best-in-class service at a highly competitive price. Please give us the opportunity to service your electronic requirements. We will meet your expectations.
